The short answer: multiply your vehicle's GVM by 1.5. That's your minimum winch rating. Find your GVM on the compliance plate in the driver's door jamb, multiply by 1.5, then convert kilograms to pounds by multiplying by 2.205.
A Ford Ranger at 3,350kg GVM works out like this: 3,350 × 1.5 = 5,025kg, then 5,025 × 2.205 = 11,080lb. Which means the 9,500lb winch a lot of people fit to a Ranger is undersized, and even a 10,000lb is marginal. You want a 12,000lb.
That calculation catches most people out, so let's go through why the multiplier exists, where the rated capacity number is misleading, and what else has to be right before a winch is any use to you.
Why You Multiply by 1.5 Instead of Just Matching Vehicle Weight
A winch rated at exactly your vehicle's weight would be fine if you got stuck on flat, dry, level ground. Nobody gets stuck on flat, dry, level ground.
Real recoveries involve a vehicle that's bogged in mud with suction holding it down, or nose-down in a rut, or sitting on a slope, or all three. Each of those adds enormous resistance beyond the vehicle's dead weight. Soft sand and sticky clay in particular can double the effective load.
The 1.5 multiplier is a safety margin for exactly that. Some go to 2× for heavily loaded touring rigs or serious terrain, and there's no downside to over-speccing beyond cost and weight — a bigger winch working at a fraction of its rating runs cooler, faster, and lasts longer than a small winch working flat out.
Use GVM, not kerb weight
This is where people undersize without realising. Kerb weight is the vehicle empty. GVM (Gross Vehicle Mass) is the maximum it's legally allowed to weigh loaded — passengers, fuel, water, fridge, drawers, rooftop tent, bull bar, the lot.
You don't get bogged on the way to the shops with an empty ute. You get bogged fully loaded on day four of a trip. Size for that.
If you've had a GVM upgrade fitted, use the upgraded figure. If you're running consistently over standard GVM (a separate problem worth addressing), size for reality rather than the plate.
Winch Size Chart for Common Australian 4WDs
These are worked examples using typical GVM figures. GVM varies significantly by model year, variant and any upgrades — always check your own compliance plate rather than relying on this table.
| Vehicle type | Typical GVM | GVM × 1.5 | Minimum winch |
|---|---|---|---|
| Small 4WD (e.g. Jimny) | ~1,400–1,600kg | ~2,100–2,400kg | 6,000lb |
| Mid-size wagon / Wrangler | ~2,400–2,700kg | ~3,600–4,050kg | 9,500lb |
| Dual-cab ute (Ranger, HiLux, D-Max, Triton) | ~2,900–3,350kg | ~4,350–5,025kg | 10,000–12,000lb |
| Large wagon (LandCruiser 300, Patrol Y62) | ~3,300–3,500kg | ~4,950–5,250kg | 12,000lb |
| 79 Series / heavily loaded tourer | ~3,300kg+ | ~4,950kg+ | 12,000lb+ |
| Tray-back with canopy, water, long-range tanks | Often at GVM limit | — | 12,000lb+ |
The pattern for most Australian dual-cab utes: 12,000lb is the safe answer, 10,000lb is the compromise, 9,500lb is undersized once you're loaded.
The Rated Capacity Number Is More Optimistic Than It Looks
Here's the detail most buying guides skip, and it matters more than the badge on the box.
A winch's rated capacity is measured on the first layer of rope on the drum — when the drum is nearly empty. As rope spools on and layers build up, the effective diameter grows and pulling power drops. By the outer layers you can be down substantially from the rated figure.
In a real recovery you're often pulling with most of the rope still on the drum, which is exactly when the winch is weakest. That's another argument for the 1.5 multiplier being a floor rather than a target.
Two practical responses: spool out more rope than you think you need so you're pulling on the lower layers, and learn to use a snatch block.
A snatch block roughly doubles your pulling power
Running the rope out to an anchor, through a snatch block, and back to a rated recovery point on your vehicle gives you a double line pull. That roughly doubles the effective pulling force while halving the line speed.
It's slower, and it needs a bit more setup, but it turns a marginal recovery into a comfortable one and takes a lot of heat out of the motor. A snatch block is one of the cheapest and most useful things you can carry.
What Else Has to Be Right
The winch rating is one number among several. These decide whether it actually works when you need it:
Your bull bar and mounting plate. The winch has to physically fit and the mount has to be rated for the load. A winch bolted to something that isn't designed to take it is dangerous — the loads involved will tear inadequate mounts off a vehicle. Check the bar is winch-compatible and the mounting pattern matches.
Your battery and charging system. Winches draw enormous current under load — hundreds of amps at full pull. A tired battery, thin cabling or a marginal alternator will leave you with a winch that stalls halfway through a recovery. Heavy-duty cable and a healthy battery are part of the install, not optional extras.
Rated recovery points. Both ends of the pull need to be attached to something engineered for it. Tie-down points are not recovery points. A tow ball is not a recovery point — a tow ball that lets go under winch load becomes a projectile.
Duty cycle and heat. Electric winches are not designed to run continuously. Long pulls generate serious motor heat, and heat is what kills winches. Pull in stages and let it cool.
Waterproofing. Australian conditions mean water crossings, dust and salt. Sealing quality separates winches that last from winches that corrode.
Winching Safety: The Part That Actually Matters
A winch under load stores a frightening amount of energy. People are killed and seriously injured in recovery incidents in Australia, and it's almost always preventable.
- Use a winch damper. A weighted blanket over the line drags it to the ground if something lets go instead of letting it whip. Non-negotiable, especially with steel cable.
- Keep everyone well clear. Bystanders should be well outside the danger zone, not standing around filming. A failed line or fitting travels a long way.
- Never step over a loaded line. Walk around it.
- Wear heavy gloves — steel cable develops sharp burrs that will open your hands up.
- Inspect before every use. Frayed rope, damaged hook, bent fairlead — find it before it fails.
- Use rated gear throughout. The recovery is only as strong as its weakest component, and that includes shackles and straps.
- Get trained. A 4WD recovery course is the best money you'll spend on your setup, and it's worth far more than upgrading from a 10,000lb to a 12,000lb winch.
Please note: this guide gives general sizing guidance, not a fitment guarantee or a substitute for training. GVM figures vary by variant and year — check your compliance plate. Winch capacity is only one part of a safe setup; mounting, wiring and installation all need to be correct for your vehicle. Always follow the winch manufacturer's instructions, and confirm fitment with the bar and winch manufacturers before buying. If you're unsure about installation, use a qualified fitter.
Choosing Between Models
Once you know your number, the remaining decisions are rope type, build quality and budget.
On rope: synthetic and steel each have real advantages, and the popular assumption that synthetic is simply safer isn't the whole story. Our guide to synthetic vs steel winch rope covers the honest trade-offs.
On build: the gap between a budget winch and a premium one shows up in sealing, motor quality, gear train and how they behave on the third recovery of the day rather than the first.

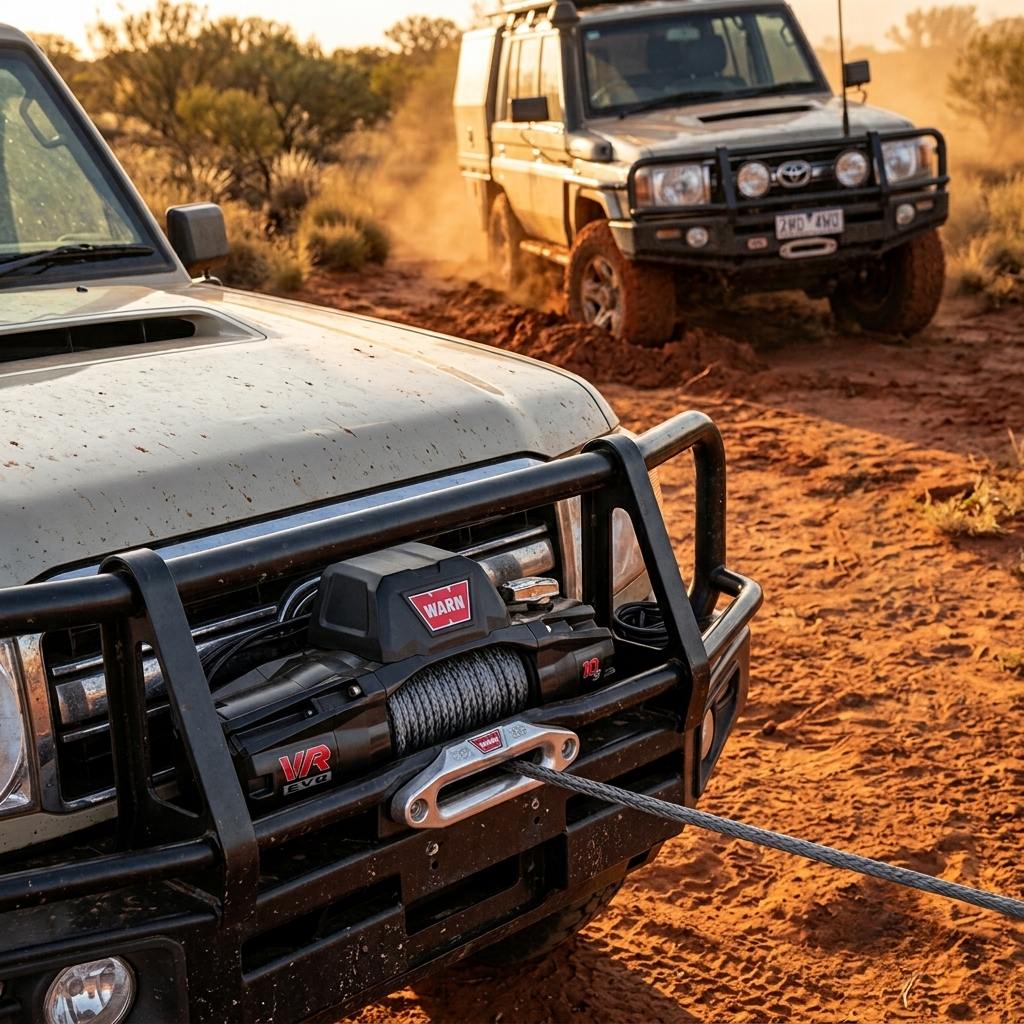

We stock the Warn winch range in both VR EVO and ZEON series, with 8,000lb, 10,000lb and 12,000lb options in steel and synthetic. If you've done the maths and want a second opinion on your specific vehicle and setup, get in touch with your GVM and bar details.
